This is the BMW VIN decoder. Every BMW car has a unique identifier code called a VIN. This number contains vital information about the car, such as its manufacturer, year of production, the plant it was produced in, type of engine, model and more. Having the right BMW tools make your life in the garage or at the track much easier. If you need BMW shop tools to optimize to performing needed BMW repairs or maintenance, or need a specialized BMW diagnostic tool, our selection of high quality BMW tools can help you sustain or maximize your BMW.

10) Hit the Connect Button on E-Sys Selcect Target Vehicle (e.g. TargetSelector:Project=F010-12-03-511m VehicleInfo=F010) 11) Select Connection via VIN, and click Connect. A VIN code 'plate' may be riveted to the left-hand suspension turret in the engine bay. This plate may shows additional information such as weight and capacity. Vehicle legal documents, like the 'Log-Book'. How to manually read a BMW VIN Code. Decoding a BMW VIN is relatively straightforward. You can see most of the decoded data via our own.

c. If Coding for an extended period of time (>30 minutes or so

How to install and configure BMW ENET E-sys software on MacBook Pro V10?

Here are the instructions for getting BMW ENET cable (Ethernet to OBD) Interface E-Sys F-series coding software running in a Virtual Windows environment running under MacOSX.

Please note that these instructions have been prepared from a MacBook Pro running MacOS version 10.7.4, along with VMWare Fusion version 4.1.2 (not in bootcamp mode), running Windows 7 (x86) SP1.

The configuration and instructions prepared for E-Sys can be followed exactly as they have been prepared for the Windows environment here within the virtual windows as well.

Please configure the VMWare Network Adapter to have a bridged connection to the OSX physical adapter, as in the following screenshot:

Note: at the time this screenshot was captured, the Ethernet wire was not connected to the car, hence it is shows a red circle in front of the title “Ethernet”. Once connected to the car (or any active ethernet wire), the circle will be green.

If disk space is of no concern, then the rest of the instructions below can be ignored. However, considering the size of the psdzdata folder (approximately 15 gigabytes and growing per release), and usually virtual machines do not have as much disk space available to them as the parent OS, one can store the psdzdata folder on the Mac side and allow E-Sys to see the files from within the virtual windows.

Ensure that Windows is able to see a folder on the MacOS environment as a standard shared resource. The easiest way to do this is to enable Shared Folders and Mirror the Downloads folder to be the same between the virtual Windows and MacOS:

Now, create a folder called “BMW” or anything else that is desired on the Mac’s Downloads folder. The contents of the MacOSX downloads folder will be available in Windows via Z:Downloads under Windows Explorer.

In the ~/Users/username/Downloads/BMW folder, create a folder called: “ESysData”, and copy the contents of the folder “C:EsysData” to the “Z:DownloadsBMWEsysData” folder. Now extract the entire downloaded “psdzdata” folder content in the psdzdata folder of the MacOS environment. Lastly, copy (not move) the contents of the following folder:

~/Users/username/BMW/EsysData/psdzdata/swe

Al wife stories video. His wife and my husband went to another bedroom. He asked me to undress immediately. He wanted to see me naked so badly. I've decided what ever happens I would let this night go. He leered at me like an animal. Then he took me to the bed and things went. This is the story of an Al‑Anon member who made an interesting discovery concerning one little word and what it did for her.“After my husband became sober in AA, I spent the usual spell on the pink cloud we hear so much about. Although I’d had four years in Al‑Anon, my attitude might be summed up this way: ‘I’ve won this battle. Visit American Prairie Filmworks Store at Teespring. We have mugs featuring Al White!' A gritty, wrenching account of battle from a first-hand participant de. Get the latest Alabama Local News, Sports News & US breaking News. View daily AL weather updates, watch videos and photos, join the discussion in forums. Find more news articles and stories online.

to the following folder within the EsysData folder structure created above:

Adobe illustrator free download windows 10newinnovations. ~/Users/username/BMW/EsysData/SWE

Please note that the “username” that appears in the above two paths will be the MacOS user’s username. Also, considering the fact that the Windows filesystem does not support case-sensitivity, the folder name cases specified above do not have any significance other than readability.

In E-Sys coding software, from the “Options” menu select “Settings…” and then select the “Program” tab. Ensure that the EsysData folder path is correctly specified with respect to where they are on the MacOSX environment and the Windows shared folder path. See screenshot:

The EST file also needs to be mapped to E-Sys, and this file can be stored on the Mac side as well. Although it does not have a significant file size, it is advantageous to have this file on the Mac side for those who use Time Capsule as a backup solution and would like these files to be backed-up. In this case, the following illustration shows where the location of the EST file can been configured:

The rest of the instructions that have been prepared for windows need to be followed in order to alter the coding of a BMW via E-Sys running in VMWare Fusion and MacOSX.

GENERATE YOUR RETROFIT FSC CERTIFICATES


  • Forget about emulators, script activations, hard map updates..
  • This is a better-enhanced version of what is selling/floating around these days.
  • NO BOOTLOADER MODE
  • DONE IN 10 SECONDS!
  • NO BRICKING
  • CiC Read code 1B with USB
  • BMW FSC / IBAC Generator v1.0.1.2.
  • Latest Lookup.xml included.
This is patcher for BMW CIC Professional Navigation, it patches binary file and
replaces root certificate what enables you to sign your own FSC certificates
from within FSTOOL or E-SYS like OEM. After patching, Self-generated certificates will be accepted as OEM ones.
  • This is ONLY for US (United States) and ECE (Central Europe) software versions!
  • You should update your CIC software to the latest before applying the patch!
  • Unlike other patches floating around, this one is done in 10 seconds or less. There is no need.
  • For multiple reboots, or hang in 'Bootloader' mode which exposes the system to bricking or failure.
HOW TO USE IT
  • Format the USB drive with a FAT32 file system
  • Copy file 01_PATCHERUSB_AUTORUNcopie_scr.sh to empty USB drive
  • Insert the USB drive into CIC, wait until reboot and you're done! (if CIC will not reboot in 20 seconds, it means that there is software incompatibility or already patched, read pre-requests).
  • After CIC has been patched and it restarted you can fire-up E-SYS or FSTOOL. If you go ahead and check the status of FSC you will see that CIC has been virgins and only root certificate is accepted. Key you should use for signing FSC certificates is 00_PRIVATEKEYSfscs.der other two private keys (root.der and sigs.der) you will have no use for, they are included just so the cert chain is complete.
  • To make certificates for your VIN you can use files in folder 03_FSC_TEMPLATES from the archive,
  • Load them in E-SYS (FSC Editor) or FSTOOL, change ONLY VIN, sign them and save as.

** VERY IMPORTANT: If you do not know what you are doing when modifying template certificates, change only VIN to match yours,
do not edit other fields including date of issue.
  • After making all certificates you will need for your retrofit you can install them normally via FSTOOL or ESYS, other needed certificates as SIGs and FSCs cert you can find in folder 02_CERTS from this archive.

PLEASE NOTE, AFTER PATCHING CIC IS VIRGINIZED AND MAY SHOW THAT
FSCS AND SIG CERTS ARE REJECTED, AND ROOT ACCEPTED. THIS IS NOT A
PROBLEM AS YOU WILL OVERWRITE IT WITH PROVIDED CERTS VIA FSTOOL
OR E-SYS.
0017 - Voice control
0019 - Navigation system Professional
001B - Navigation system Professional
00XX - LifeTime Map Code
006F – Satellite Tuner
009B – Arabian Language
009C - BMW Apps
Full set for BMW CIC.
for E-Series: use FSTOOL
for F-Series: use E-SYS
same procedure as with OEM certificates.
  • CIC Read code 1B with USB
Follow next steps to calculate your FSC code for CIC Navigation updates

How To Change Bmw Vin By Ediabas Tools32auto Diagnostic Tool

1. Unpack the ZIP file to the root of an empty USB stick
2. Power on your car and wait until the navigation system has started completely
3. Put the USB stick in the USB port in the glove box
5. Remove the USB stick and put it in your (Windows) computer
6. Check if the file 1b.hex is present on the USB stick (if not go to step 2 and try another USB stick)
7. edit fsc.bat and update the year code (when needed)
9. a file 'code.txt' is created which contains the FSC code for your car!
10. for next year updates, just update fsc.bat with new year code and run fsc.bat again.
BMW CIC Activate Internet for FREE
You will need donor VIN's from another country not of yours.
How to change bmw vin by ediabas tools32auto diagnostic tools
  • Add 614, 615, 6AL to VO
  • Set TELEMATIK_VIN = CODING_VIN
  • Write Magic VIN to Combox
  • Update BMW Services (BMW Live and Internet should work afterwards)
  • Return TELEMATIK_VIN = MOST_VIN
  • DO NOT Update BMW Services again.

The 'magic VIN' is needed one time only after initial coding to Update BMW Services.
After that, TELEMATIK_VIN should be set back to MOST_VIN, as if the car goes in for programming with 'magic VIN', ISTA/P will choke.
Do not Update BMW Services again after returning the car to factory VIN.

HOW TO:Vin activating internet service Combox/CIC (Internet via Customer Mobile Phone)
Here is a short description of what you need to do to activate the Internet in your BMW car.
This information is absolutely free, so there is no need to pay anyone for this 'TOP-SECRET' internet activation procedure!!How To Change Bmw Vin By Ediabas Tools32auto Diagnostic Tool
There might be other ways to activate internet or maybe I did some steps which are useless, however, this way it worked for me, maybe you can refine the procedure here so you have the exact steps.
Activation internet for Combox should also work for older software versions, so try it out and see what happens.
Keep in mind that you will lose assist related services if you activate 'Internet over customer mobile phone', which makes sense because BMW has its own internet flat rate for assist customers in his portfolio.
You will need for activation:
• Tool32
• NCSexpert
• Suitable VIN (eg from eBay or your local BMW dealer)
• Internet-capable phone, able to share an internet connection over Bluetooth (e.g. iPhone with tethering activated). If your provider blocks tethering, enable it with tools like there from Cydia store..
The idea is to let the BMW servers think, that your Combox is in a BMW, which is built for a country where assist service is not mandatory for internet access. You can analyze the BMW.com homepages connected drive section to see what services are available for what country. I don't have the URL handy so maybe someone who knows can post it here.
Keep in mind that COMBOX with internet was not built for the car from 1999 so look for the right models/makes/years!
All cars with Combox which are built for the US-Market are okay for this.
eBay or your local US BMW dealer is a good source to get the VIN you require. You can use this VIN also in a county where Internet without assist is not allowed E.G. Germany.
Theoretically, a customer could have bought his car in the USA and they could have travelled to Germany and could use internet service there..
Here is what you have to do, to get internet running:
  • First, remove assist related services from your CIC and recode CIC with NCSExpert. You might want to use this well known .ssd file with the option $612 removed.

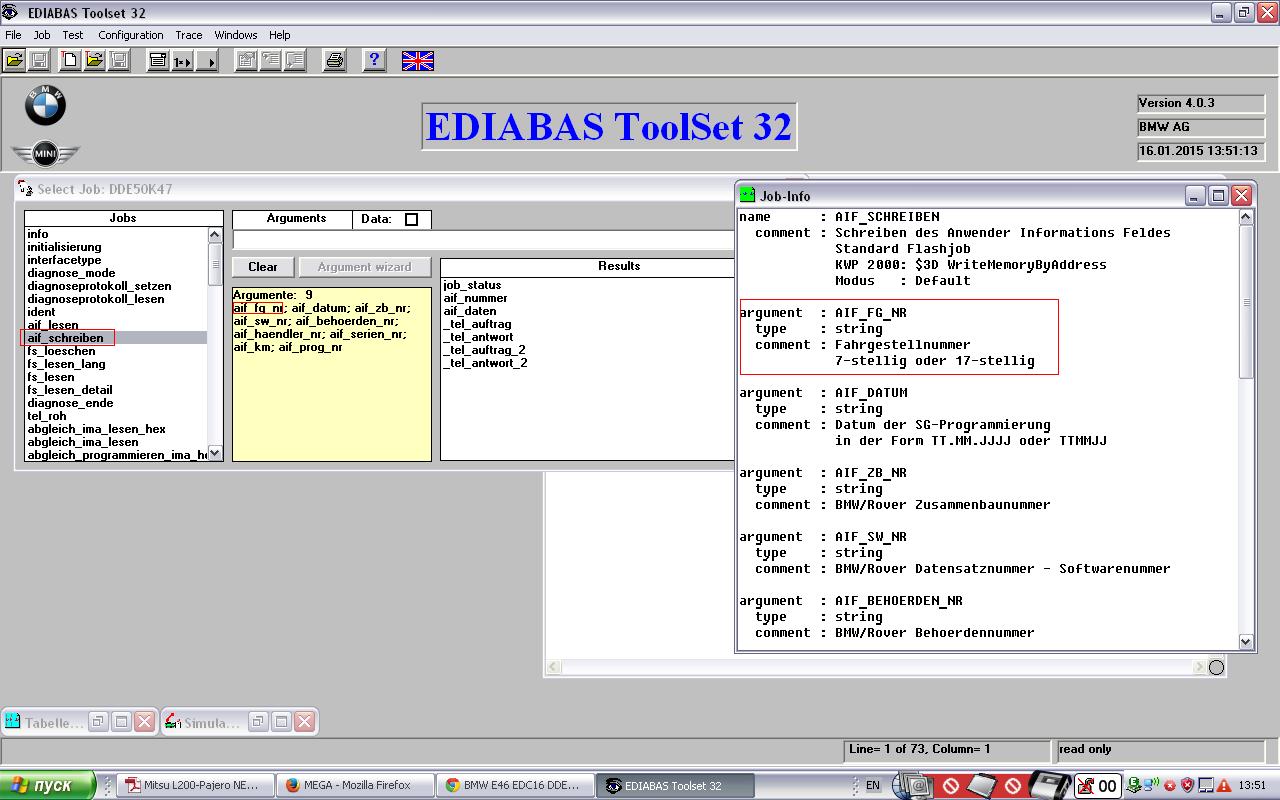

  • Once CIC is coded properly, with tool32 write a suitable VIN into the Combox. CMEDIAR.prg is the right ECU for that. I changed the VIN at 2 places in Combox.
  • FG_schreiben and something below which is also VIN writing related.
  • To make sure the related VIN is set properly in all involved ECUs I also coded the VIN into CIC (CICR.prg) same place FG_schreiben and the one below. It might be that you do not need to do this for CIC.

After coding that enables iPhone tethering function.
  • Go to connected drive or BMW online menu and chose to update BMW-Services. It now should make an online update of available services. Your iPhone begins to blink blue (tethering)
  • After the services are updated and if your Combox VIN is in white-list or is not blacklisted the internet will work.
  • Make sure the VIN you code (and you need to get) is full length plus a digit (for checking the sum), however, any digit will do..
  • Use the below to find a suitable VIN, use your last 7 digits, then increment them to find other cars with the correct 614 and 615 options
Mini guide on how to extract your DE (NBT) or 1B (CIC) file, generate the FSC code.
Prerequisites:
ESYS
ENET Cable
PSDZData Lite (lite version is fine for FDL coding, you only need the full package if you want to flash ECUs)
Token (not required to reach FSC Extended)
CIC PREMIUM Maps or NBT NEXT Maps
If you are generating maps for NEXT, then you need to follow the guide for DE
If you are generating maps for MOVE, MOTION or PREMIUM, then you need to follow
the guide for 1B

Extracting the DE or 1B file:
Fire up E­sys make sure you're connected to the F20 (not F20_Direct) via your VIN and then in
the left-hand vertical menu selects FSC Extended.

For NBT (DE File):
In the Parameter section enter:
1. Diagnostic Address (hex) = 0x63
2. Click on the Identify button and the Base variant HU_NBTwill be populated
3. Application ID for NBT= 0xDE
4. Upgrade Index = 0x1

For CIC (1B File):
In the Parameter section enter:
1. Diagnostic Address (hex) = 0x63
2. Click on the Identify button and the Base variant HU_CICwill be populated
3. Application ID for NBT= 0x1B
4. Upgrade Index = 0x1

In the Action section:
5. Select Store FSC and move from left to the right
6. Click on the Read button
7. Click Save and name the file in the following formatXXXXXXX.fsc where XXXXXXX is
last seven letters/numbers of your VIN or your donor NBT vin if you have retrofitted the NBT.
8. [Optional] You can now disconnect e­Sys from your car as the next stages can be
performed offline.

Getting the Code Generation Software:
Unzip the directory attached. The directory can be placed/run from anywhere.

Generating the FSC code using the BMW_CIC_NBT_FSC_Generator for NBT:If you are generating NBT, copy fsc.exe in the NBT_FSC directory to the tools directory.
  • Place your XXXXXXX.fsc into your tools directory (same location as the Base64.exe)
  • Open a command prompt (DOS Screen) and go to the tools directory
  • Type 'Base64 XXXXXXX.FSC XXXXXXX_000DE001.FSC' and press enter
  • Open BMW­FSC­NBT­Generator.exe
  • Click 'Browse' and select the XXXXXXX_000DE001.FSC file you generated in step 3, it should be in your tools directory.
  • Choose your map product from the list (For me it was 'Road Map EUROPE NEXT 2015­1)
  • Click 'Generate'


Generating the FSC code using the BMW_CIC_NBT_FSC_Generator for CIC:If you are generating CIC, copy fsc.exe in the CIC_FSC directory to the tools directory.
  • Place your XXXXXXX.fsc into your tools directory (same location as the Base64.exe)
  • Open a command prompt (DOS Screen) and go to the tools directory
  • Type 'Base64 XXXXXXX.FSC XXXXXXX_0001B001.FSC' and press enter
  • Open BMW­FSC­NBT­Generator.exe
  • Click 'Browse' and select the XXXXXXX_0001B001.FSC file you generated in step 3, it should be in your tools directory.
  • Choose your map product from the list (Road Map EUROPE PREMIUM 2014­1)
  • Click 'Generate'

How To Change Bmw Vin By Ediabas Tools32auto Diagnostic Tool Kit



Preparing the USB stick:
Takes about 45 mins to upload the Maps to your car; make sure you enter the code
in CAPITALS, it has been said that you should have the car on/running during this period. But
for me just pressing the Start button once was enough. Once the update is done, you will get
a success message, wait a few minutes then turn the car on/off and then the version number
will reflect the new map.

How To Change Bmw Vin By Ediabas Tools32auto Diagnostic Tool Download


NBT
USB stick needs to be FAT32 (32GB is enough) when you extract the map data to the stick
Make sure you extract the folders to the USB root. The folders will be like:
1 (directory)
2 (directory)
3 (directory)
4 (directory)
config.nfm
NBT_ECE_101141.3.111.pkg
NBT_ECE_101141.3.111.pkg.sig

CIC
For the PREMIUM (CIC) maps you will have three directories:
USB1 (directory)
USB2 (directory)
USB3 (directory)
Copy the entire contents of USB1 to the root of the USB stick, should only be the following:
config.nfm
pkgdb (directory)
Once uploaded to the car, the car will ask for USB2. Delete both the config.fm and pkgdb
from the root and repeat the above with USB2..and then again with USB3
What happens when NEXT/Premium comes out? You just need to edit the Lookup.xml file with the new map details, just look at the previous entries, its follows a sequence.
Save your XXXXXXX_000DE001.FSC file, you can now just refer to this file and generate as and when the new maps come along. If you lose this file you will need to do the extraction steps again.
